STORE OPEL GT, OPEL KADETT B, OPEL ASCONA A & OPEL MANTA A Rear Axle Shim Kit for CIH Rear Axle, Boxed Set DRIVE
7031

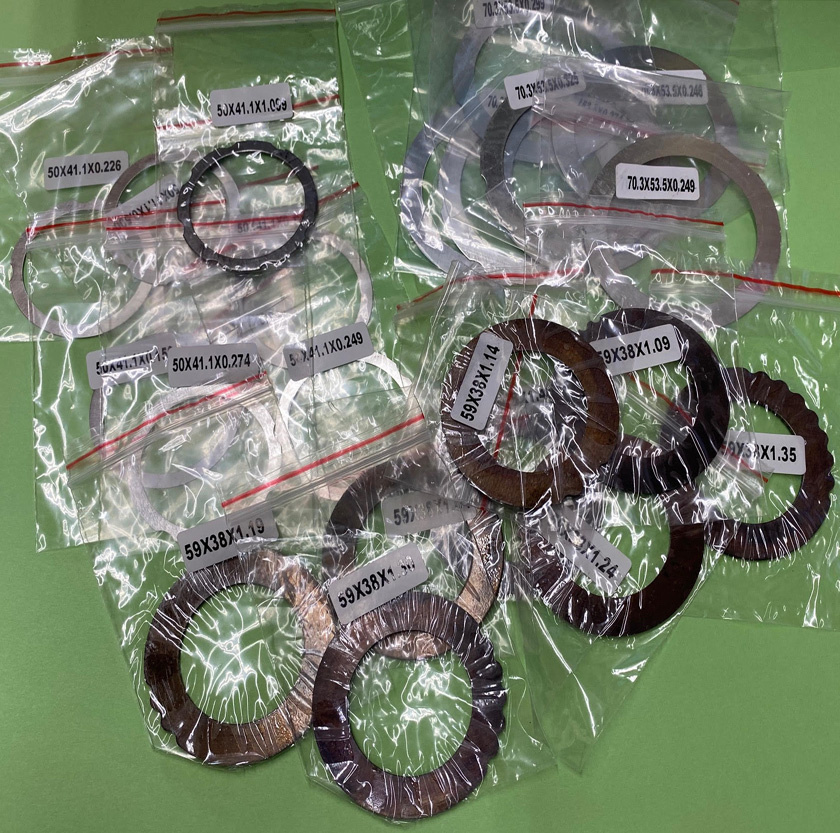

7031_rear_axle_shim_kit_photo01

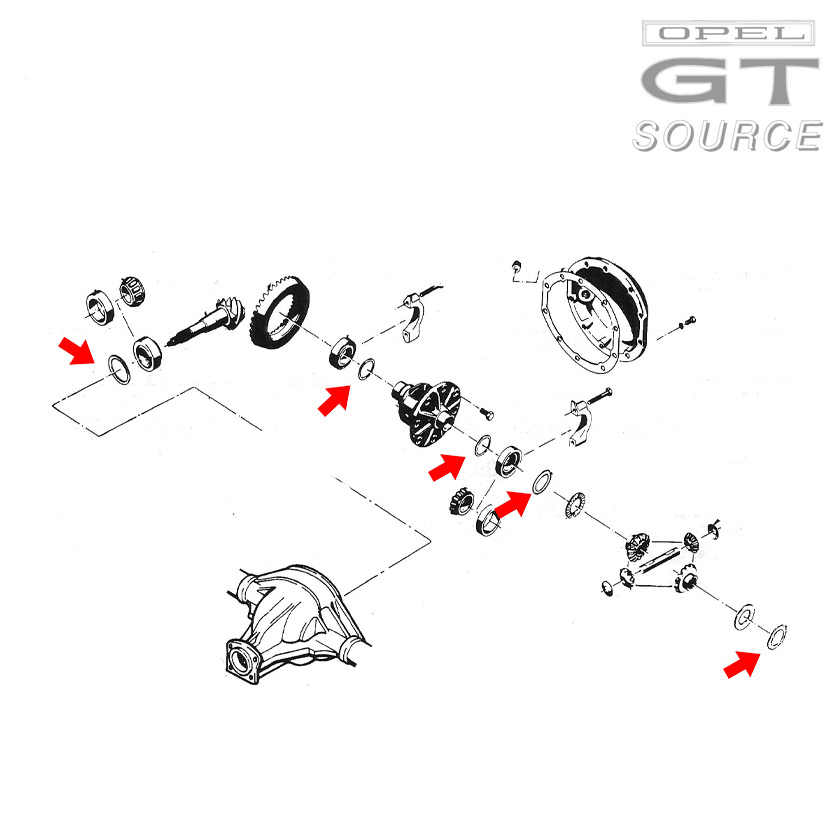

7031_opel_rear_axle_shim_kit_diagram01

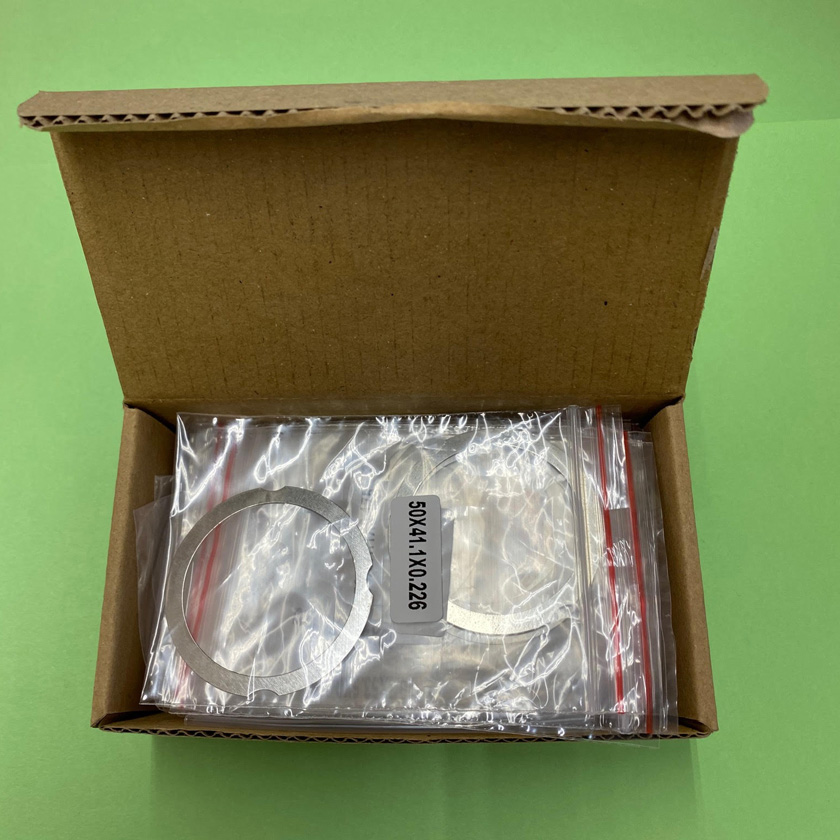

7031boxopen
7031
Car type: OPEL GT, OPEL KADETT B, OPEL ASCONA A & OPEL MANTA A
Category: Rear Axle
Shim Kit for CIH Rear Axle, Boxed Set DRIVE
Part: 7031

Price:
$29.00   $35.00
Description:
Shim Kit for Opel 1.9L CIH rear axles. Includes 23 shims of varying thickness'. Shims are individually bagged and marked with diameter and thickness. Each shim is also notched and corresponds to the thickness in the Opel service manual. 3 different diameters: 50mm OD - 41.1mm ID, 70.3mm OD - 53.5mm ID, 59mm OD - 38mm ID. Required for proper reassembly when installing new gears, pinion and or side carrier bearings. Note: use with crush sleeve pn# 7027 when replacing pn# 7021pinion bearings. Equivalent to Opel #16 04 202. Can also be used on Buick/Opel by Isuzu and most Chevette, as well as many Isuzu I-Mark rear wheel drive rear axles
